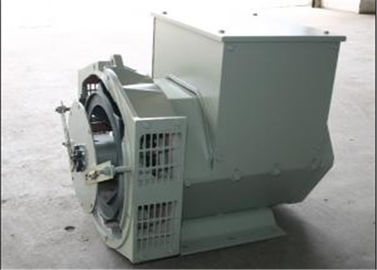

1500RPM 6.5kw - 1720kw Three Phase Alternator 60hz For MTU Generator Set

1500RPM 6.5kw - 1720kw Three Phase Alternator 60hz For MTU Generator Set

    • 1500RPM 6.5kw - 1720kw Three Phase Alternator 60hz For MTU Generator Set
  • 1500RPM 6.5kw - 1720kw Three Phase Alternator 60hz For MTU Generator Set

    รายละเอียดสินค้า:

    Place of Origin: Wuxi,China
    ชื่อแบรนด์: Werna
    ได้รับการรับรอง: CE,ISO9001,SASO
    Model Number: WR224F

    การชำระเงิน:

    Minimum Order Quantity: 5pcs
    ราคา: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    ติดต่อ
    รายละเอียดสินค้า
    Rated Voltage: 190-454v Excitation: Brushless, self-excited, synchro
    Warranty: 2 years life time: more than 20 years
    Package: plywood MOQ: 1
    แสงสูง:

    3 phase portable generator

    ,

    three phase alternator

    1500RPM 6.5kw - 1720kw 3 Phase AC Generator 60hz For MTU Generator Set


    Quick detail:

    Name

    ALTERNATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator

    Power

    6.5-1720KW

    Certificate

    CE,ISO9001,SASO


    Specication:

    manufacture

    Wuxi City ,Jiangsu Prov ,China making alternators

    Output type

    AC Three Phase Brushless generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    190V~454V

    Frequency

    50Hz

    Speed

    1500RPM

    Mounting Dimension

    Stamford Type

    Winding  pitch

    2/3 pitch

    Excitation

    Brushless, self-excited, synchro

    Insulation Class

    H



    Werna Type 3Phase 50Hz 1500rpm Shaft length Copper total weight Core length
    380V~415V
    KVA KW mm kgs mm
    WR224C 42.5 34 668.2 23.45 130
    WR224D 50 40 668.2 25.35 160
    WR224E 60 48 758.2 28.24 180
    WR224F 72.5 58 758.2 32.84 240
    WR224G 85 68 673.3 35.94 300

    Description:
    with long experience in manufacturing alternator / ac generator.
     Alternator Power Ranging 6.5 --1720KW
    for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.

     Frequency And Voltage
    50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

    Insulation and Protection
    Insulation: H, Protection: IP23
     IP23 is for optional but the rated power will decrease 5%.

     Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

     Winding
    All generator stators are wound to 2/3 pitch.

    Why to choose Werna Alternator/generator?
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8. Good after-sale service
    1500RPM 6.5kw - 1720kw Three Phase Alternator 60hz For MTU Generator Set 0
