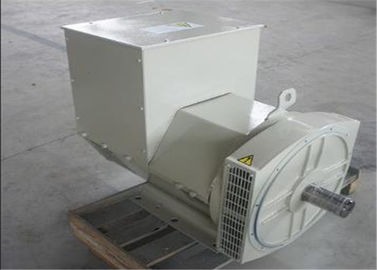

IP23 High Effeciency Permanent Magnet Generator 3 Phase Power Generator 134KW / 168kva 60hz

IP23 High Effeciency Permanent Magnet Generator 3 Phase Power Generator 134KW / 168kva 60hz

  • IP23 High Effeciency Permanent Magnet Generator 3 Phase Power Generator 134KW / 168kva 60hz
IP23 High Effeciency Permanent Magnet Generator 3 Phase Power Generator 134KW / 168kva 60hz
รายละเอียดสินค้า:
Place of Origin: Wuxi,China
ชื่อแบรนด์: Werna
ได้รับการรับรอง: CE,ISO9001,SASO
Model Number: WR274E
การชำระเงิน:
Minimum Order Quantity: 5pcs
ราคา: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
ติดต่อ
รายละเอียดสินค้า
Manufacturer: Wuxi City ,Jiangsu Prov ,China making alternators Output Type: AC Three Phase & 3 Phase diesel generators
Rated Voltage: 190-454v Speed: 1500Rpm or 1800Rpm
Control: Good AVR Rated Current: as per voltage: as per voltage
แสงสูง:

3 phase portable generator

,

three phase alternator

IP23 High Effeciency Three Phase Synchronous AC Generator 134KW / 168kva 60hz


Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

134KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

208V~480V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H



Parameter:



Werna Type 3Phase 50Hz 1500rpm Shaft length Copper total weight Core length
380V~415V
KVA KW mm kgs mm
WR274C 100 80 758 41.24 165
WR274D 120 91 758 47.64 205
WR274DL 125 100 758 49.2 215
WR274E 140 112 873 52.21 230
WR27EL 150 120 873 53.1 250
WR274F 160 128 873 54.81 285
WR274G 181 145 923 62.11 335
WR274H 200 160 963 67.91 375
WR274J 230 184 1006.6 74.61 450
WR274K 250 200 1006.6 76.1 450











































Description:
with long experience in manufacturing alternator / ac generator.
Alternator Power Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.

 Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.

 Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.

Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
IP23 High Effeciency Permanent Magnet Generator 3 Phase Power Generator 134KW / 168kva 60hz 0IP23 High Effeciency Permanent Magnet Generator 3 Phase Power Generator 134KW / 168kva 60hz 1
