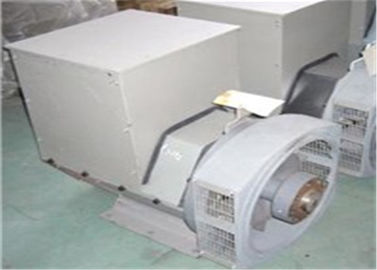

Synchronous Excitation 3 Phase Portable Generator 916kw 1145kva 60hz 208v - 480v

Synchronous Excitation 3 Phase Portable Generator 916kw 1145kva 60hz 208v - 480v

  • Synchronous Excitation 3 Phase Portable Generator 916kw 1145kva 60hz 208v - 480v
Synchronous Excitation 3 Phase Portable Generator 916kw 1145kva 60hz 208v - 480v
รายละเอียดสินค้า:
Place of Origin: Wuxi,China
ชื่อแบรนด์: Werna
ได้รับการรับรอง: CE,ISO9001,SASO
Model Number: WR634E
การชำระเงิน:
Minimum Order Quantity: 1 pcs
ราคา: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
ติดต่อ
รายละเอียดสินค้า
Rated Current: as per voltage: as per voltage Packaging details: Packed in standard seaworthy packing (wooden cases / plywood etc)
OEM Service: acceptable Material: Cold roll stator & 100 % copper
Color: optional Insulation class: H
แสงสูง:

3 phase portable generator

,

three phase alternator

Synchronous Excitation 3 Phase AC Generator 916kw 1145kva 60hz 208v - 480v






Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

916KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

208V~480V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H



Technical data

Werna Type 3Phase 50Hz 1500rpm Shaft length Copper total weight Core length
380V~415V
KVA KW mm kgs mm
WR634B

750

600 1459.2 212.2 355
WR634C 800 640 1459.2 222.2 380
WR634D 910 728 1459.2 234.2 410
WR634E 1000 800 1459.2 251.2 465
WR634F 1130 904 1459.2 283.2 560
WR634G 1250 1000 1560.2 303.2 675







Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.

 Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.

Why to choose Werna Alternator/generator?

1, Advanced AVR :SX460 &SX440
2, H class insulation ensure the generator running in dreadful conditions
3, The 2/3 pitch design avoids excessive neutral currents
4, You can reconnect 12 ends of the terminals to meet other voltage
5, Single bearing and double bearing ,single phase and three phases
6, Standard IP23
