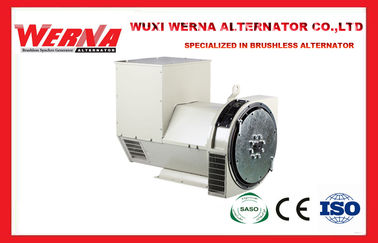

200KW Brushless AC Generator AVR 50Hz / 1500RPM , Stamford Type

200KW Brushless AC Generator AVR 50Hz / 1500RPM , Stamford Type

  • 200KW Brushless AC Generator AVR 50Hz / 1500RPM , Stamford Type
200KW Brushless AC Generator AVR 50Hz / 1500RPM , Stamford Type
รายละเอียดสินค้า:
สถานที่กำเนิด: WUXI CITY,CHINA
ชื่อแบรนด์: WERNA
ได้รับการรับรอง: CE ,ISO .,SASO
หมายเลขรุ่น: WR274K
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1PCS
ราคา: USD
รายละเอียดการบรรจุ: strong plywood cases
เวลาการส่งมอบ: 15-20days
ติดต่อ
รายละเอียดสินค้า
ชั้นฉนวน: คลาส H ระดับการป้องกัน: IP22
การรับประกัน: 2 ปี
แสงสูง:

เครื่องกำเนิดไฟฟ้า ac ที่ตื่นเต้นในตัวเอง

,

เครื่องกำเนิดไฟฟ้าซิงโครนัสแบบไม่มีแปรง

,

เครื่องกำเนิดไฟฟ้ากระแสสลับแบบไม่มีแปรง stamford 200KW

200KW Brushless AC Generator AVR 50Hz / 1500RPM , Stamford Type







Quick Detail:

Name

Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature



AC brushless synchronous excitation alternator


Power

         200kw/250KVA

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR274K

manufacturer

Wuxi City ,Jiangsu Prov ,China

Output Type

AC Single Phase

Terminal

12 / 6 Wire

Rated Voltage

220-480V

Frequency

50HZ

Speed

1500RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H class


Description:
with Long experience in manufacturing alternator / ac generator,ranging6.5~120kw
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or
Double bearing, brushless, Self-excited. Abounds with almost every model in stock.


1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable
for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
4)  Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.

Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service


Production line


200KW Brushless AC Generator AVR 50Hz / 1500RPM , Stamford Type 0
