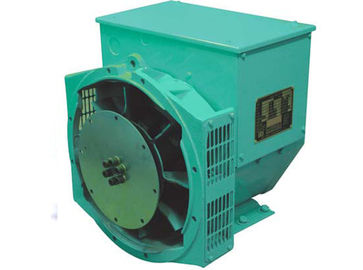

Copper Winding Wire 3 Phase Alternator Brushless 6.5kw / 8.1kva

Copper Winding Wire 3 Phase Alternator Brushless 6.5kw / 8.1kva

  • Copper Winding Wire 3 Phase Alternator Brushless 6.5kw / 8.1kva
Copper Winding Wire 3 Phase Alternator Brushless 6.5kw / 8.1kva
รายละเอียดสินค้า:
Place of Origin: Wuxi,China
ชื่อแบรนด์: Werna
ได้รับการรับรอง: CE,ISO9001,SASO
Model Number: WR164A
การชำระเงิน:
Minimum Order Quantity: 5pcs
ราคา: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 3000units/month
ติดต่อ
รายละเอียดสินค้า
แสงสูง:

three phase synchronous generator

,

3 phase alternator

Copper Winding Wire 3 Phase Alternator Brushless 6.5kw / 8.1kva




Quick detail:

Name:alternator                                  Brand name :WERNA

Color:According to the international standard color card

Feature:Ac brushless synchronous eccitation alternator

Certificate:CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

190V~454V

Frequency

50Hz

Speed

1500RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H








Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.

 Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.

Advantages of Werna Alternator/generator?

1, Advanced AVR :SX460 &SX440
2, H class insulation ensure the generator running in dreadful conditions
3, The 2/3 pitch design avoids excessive neutral currents
4, You can reconnect 12 ends of the terminals to meet other voltage
5, Single bearing and double bearing ,single phase and three phases
6, Standard IP22

Copper Winding Wire 3 Phase Alternator Brushless 6.5kw / 8.1kva 0Copper Winding Wire 3 Phase Alternator Brushless 6.5kw / 8.1kva 1Copper Winding Wire 3 Phase Alternator Brushless 6.5kw / 8.1kva 2Copper Winding Wire 3 Phase Alternator Brushless 6.5kw / 8.1kva 3
