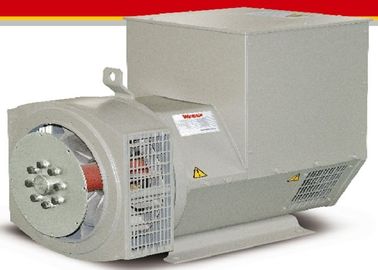

Stamford Copy 80 kva Brushless AC Generators From 110v - 240v With 2 / 3 Pitch

Stamford Copy 80 kva Brushless AC Generators From 110v - 240v With 2 / 3 Pitch

    • Stamford Copy 80 kva Brushless AC Generators From 110v - 240v With 2 / 3 Pitch
  • Stamford Copy 80 kva Brushless AC Generators From 110v - 240v With 2 / 3 Pitch

    รายละเอียดสินค้า:

    Place of Origin: Wuxi,China
    ชื่อแบรนด์: Werna
    ได้รับการรับรอง: CE,ISO9001,SASO
    Model Number: WR274D

    การชำระเงิน:

    Minimum Order Quantity: 5pcs
    ราคา: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    ติดต่อ
    รายละเอียดสินค้า
    แสงสูง:

    self-excited ac generator

    ,

    brushless ac alternator



    Stamford Copy 80 kva Brushless AC Generators From 110v - 240v With 2 / 3 Pitch




    Quick Detail:

    Name

    Alternator

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator


    Power

    10kw

    Certificate

    CE,ISO9001,SASO




    Specifications:

    Model

    WR274D

    manufacturer

    Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Single Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110-240V

    Frequency

    50HZ

    Speed

    1500RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H


    Description:
    We are Professional Manufacture for Brushless Alternator since the year of 2000, Which type are Copy of Stamford.There are 5kVA up to 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.Our company located in Wuxi city, Which is near Shanghai.We have a first-class technical personnel and a set of strict quality management system.We use the best materials and carry out the strict procedure to ensure our high quality. For example ,we have two vacuum leaching insulated paint ,which other companies can't do. Besides our Quality Engineer are old engineer who have rich experiences. And our price is reasonable for share of market is first in our company.

    1. The winding varnished wire

    The varnished wire our factory use is the H level of 200℃.And the manufacture is the famous public factory whose quality reputation is stable and reliable.

    1. Silicon Steel Sheet

    The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.

    1. Insulating paper

    The insulating paper we use are supplied by a factory in Suzhou which is invested by a foreign company.The company has strict standard of quality management.They use the material of Dupont and imported glue water.Through the survey and detection,the quality is absolutely the best.

    1. The main frame

    The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

    1. Craft

    The craft of our company use the standard of Stamford.All the workers should be trained for a long time.And we carry out the management of 6s.

    1. Component

    All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.This is a process that other factories never used.Because it would take much more electric charge,and make the insulated paint consume and loss twice,so it will increase the cost.What's more,all the components should be handled through the process of dampproof,salt and fog proof, anti-corrosion.



    Technical data

    Werna Type 1Phase 60Hz1500rpm   Case Spec.     Net Weight    Gross Weight
          110V~240V / 0.8
    KVA KW L*W*H(mm) kgs kgs
    WR224F 60 60 950*550*900 395 415
    WR224G 70 70 950*550*900 395 415
    WR274C 76 76 920*580*850 410 430
    WR274D 88 88 1035*580*850 490 510
    WR274E 110 110 1081*580*850 550  570
    WR274F 135 135 1081*580*850 550 570
    WR274H 170 170 1400*700*900 860 880



    Stamford Copy 80 kva Brushless AC Generators From 110v - 240v With 2 / 3 Pitch 0
